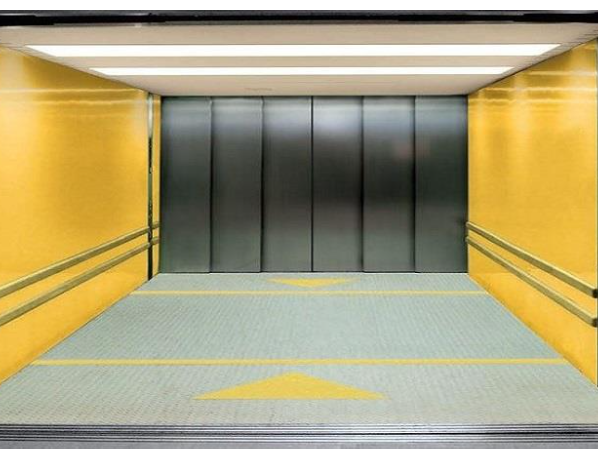

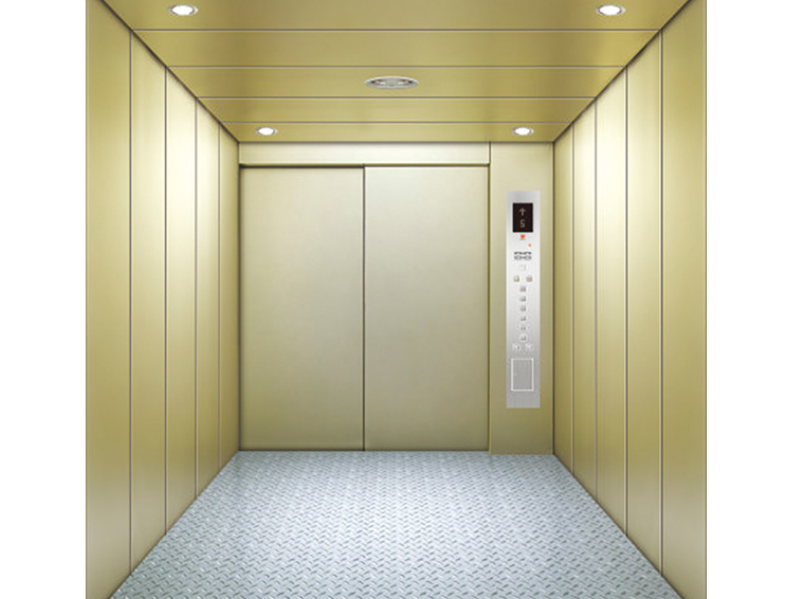

Cargo Elevator
Key Info
| Parameter | : | Specification |
| Load Capacity | : | 500 kg – 10,000 kg (customizable) |
| Lifting Height | : | Up to 30 m (or as per site requirement) |
| Platform Size | : | Custom (e.g., 1500×1500 mm to 3000×3000 mm) |
| Drive System | : | Hydraulic / Traction / Chain Driven |
| Speed | : | 0.05 – 0.3 m/s |
| Power Supply | : | 220V / 380V / 415V, 3 Phase |
| Motor Power | : | 2.2 kW – 15 kW (depending on capacity) |
| Structure Material | : | Mild Steel (MS) / Heavy Duty Steel Frame |
| Platform Surface | : | Chequered Plate / Anti-skid Steel |
| Control System | : | Push Button / PLC Optional |
| Door Type | : | Manual Swing / Collapsible / Automatic |
| Safety Features | : | Overload protection, limit switch, emergency stop, safety lock |
| Operation Mode | : | Hold-to-run / Automatic |
| Installation Type | : | Pit Mounted / Floor Mounted |
| Finishing | : | Anti-corrosion paint / Powder coating |
| Operating Temperature | : | 0°C to 50°C (industrial standard) |
| Compliance | : | As per local safety standards |
Engineered for the rigors of industrial environments, our cargo elevators provide seamless vertical transport for goods, machinery, and palletized loads. Available in both Hydraulic (low-rise, high-torque) and Traction (high-rise, high-speed) configurations, these lifts are designed to maximize uptime and warehouse efficiency.
Drive System Options
- Hydraulic Guide Rail (The "Brute"): Best for factories and warehouses with 2–5 floors. Uses a direct-acting piston for maximum lifting power and stability without the need for overhead machinery.
- Traction (The "Speedster"): Ideal for high-throughput distribution centers. Features a machine-room-less (MRL) design that saves floor space and consumes 30% less energy through counterweight balancing.
Loading Classifications (ASME/EN Compliance)
To ensure structural integrity, our units are built to specific loading classes:
- Class A: General Freight (Manual loading or hand trucks).
- Class B: Motor Vehicle Loading (Designed for cars and light trucks).
- Class C1/C2: Industrial Truck Loading (Allows for power-operated forklifts to drive onto the platform).
Advanced Safety Systems
- Door Interlocks: Mechanical and electrical locks prevent the lift from moving unless all gates are securely closed.
- Rupture Valve (Hydraulic only): Automatically stops the lift in the unlikely event of a hydraulic line failure.
- Overload Protection: Visual and audible alarms prevent the lift from operating if the weight limit is exceeded.
- Slack-Rope Safety: Instant braking system if any suspension cable loses tension.
